Here you can browse through our 19" rack mounted industial switches, including Kayer 2 and Layer 3 products with different features and port configuration.
Please clink on the "Short" bookmark on the left edge of the screen to open the product selection menu.
Teroline’s TI-4016G-8GC-4DGS-D is a rack-mountable Managed Industrial Ethernet Switch with 16 x 10/100/1000Base-T ports, 8 x 1GbE Combo ports and 4 x 1GbE/2.5GbE SFP ports, DI/DO/RS485/Modbus data port as well as a USB port for configuration and firmware upgrade. It is featured with full L2 features such as VLAN, QoS, IGMP, Port Mirroring, LLDP, security, ring protection and IPv4/6 based network management.
Teroline’s TI-4016G-8GC-4XS-D is a rack-mountable Aggregation Industrial Ethernet Switch with 16 x 100/1000Base-X SFP ports, 8 x 1GbE Combo ports and 4 x 1G/2.5G/10GbE SFP+ ports, DI/DO/RS485/Modbus data port as well as a USB port for configuration and firmware upgrade. It is featured with full L2 features such as VLAN, QoS, IGMP, Port Mirroring, LLDP, security, ring protection and IPv4/6 based network management.

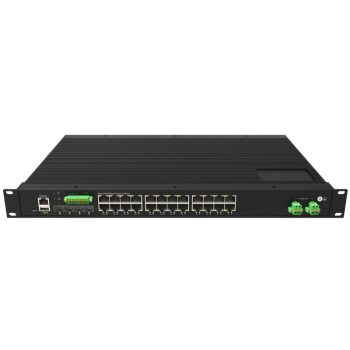

Teroline’s TI-5024G-4XS-D is an L3 rack-mountable Aggregation Industrial Ethernet Switch with 24 x 10/100/1000Base-T RJ45 ports and 4 x 1G/2.5G/10GbE SFP+ ports, DI/DO/RS485/Modbus data port as well as a USB port for configuration and firmware upgrade. It is featured with L3 static and dynamic routing with full L2 features as well as IPv4/6 based network management.
Teroline's TI-5024GPH-4XS-D is a highly reliable Layer 3 managed industrial PoE switch with 24 x 10/100/1000Base-T PoE ports and 4 x 1G/2.5G/10GBase-X SFP+ ports. It complies with IEEE802.3af PoE, IEEE802.3at PoE+, IEEE802.3bt PoE++ standard protocol (1-2 ports support 90W PoE), which is ideal solution for those high power consumption industrial networking PDs. With full gigabit downlink and 10G uplink capability, it provides high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. It supports DI/DO/RS485/Modbus data, G.8032 ERPS, MSTP/RSTP/STP redundancy technologies, Layer 3 static routing & dynamic routing features, powerful Layer 2 management and security function, which all makes it ideal for large-scale industrial networks.

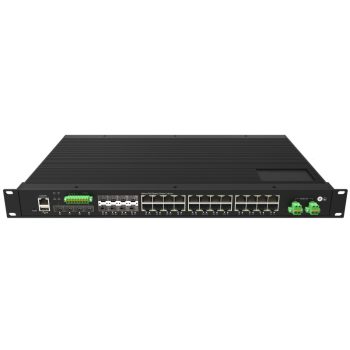

Teroline’s TI-5016G-8GC-4XS-D is a L3 rack-mountable Aggregation Industrial Ethernet Switch with 16 x 10/100/1000Base-T RJ45 ports, 8 x 1GbE Combo ports and 4 x 1G/2.5G/10GbE SFP+ ports, DI/DO/RS485/Modbus data port as well as a USB port for configuration and firmware upgrade. It is featured with L3 static and dynamic routing with full L2 features as well as IPv4/6 based network management.

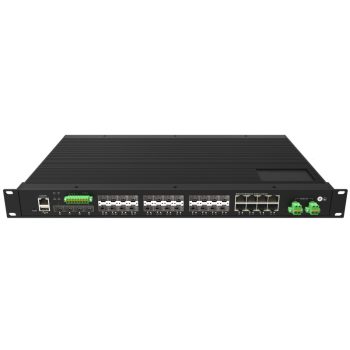

Teroline’s TI-5016GS-8GC-4XS-D is a L3 rack-mountable Aggregation Industrial Ethernet Switch with 16 x 100/1000Base-X SFP ports, 8 x 1GbE Combo ports and 4 x 1G/2.5G/10GbE SFP+ ports, DI/DO/RS485/Modbus data port as well as a USB port for configuration and firmware upgrade. It is featured with L3 static and dynamic routing with full L2 features as well as IPv4/6 based network management.
Teroline's TI-5016GPH-8GC-4XS-D is a highly reliable Layer 3 managed industrial PoE switch with 16 x 10/100/1000Base-T PoE ports, 8 x 1GbE Combo and 4 x 1G/2.5G/10GBase-X SFP+ ports. It complies with IEEE802.3af PoE, IEEE802.3at PoE+, IEEE802.3bt PoE++ standard protocol (1-2 ports support 90W PoE), which is ideal solution for those high power consumption industrial networking PDs. With full gigabit downlink and 10G uplink capability, it provides high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. It supports DI/DO/RS485/Modbus data, G.8032 ERPS, MSTP/RSTP/STP redundancy technologies, Layer 3 static routing & dynamic routing features, powerful Layer 2 management and security function, which all makes it ideal for large-scale industrial networks.
